Product Details:
|
| Material: | Steel/Q235B | Service: | OEM ODM |
|---|---|---|---|
| Maximum Load-bearing Capacity: | 216kg/meter | Length: | 2400mm,2500mm,3000mm |
| Certification: | ISO9001-2015 | Sample: | Available |
| Surface Finished: | HDG/POWDER COATED | Package: | Carton Box+Pallet |
| High Light: | HDG Powder Coated Cable Trunking,EG SS304 Powder Coated Cable Trunking,HDG EG galvanised steel trunking |
||
HDG Hot Dip Galvanizing Cable Trunking
Products:Cable Trunking
Features:Koka Cable Trunking are manufactured from mild steel cold rolled coil, and after stamping and machining operations are completed, they are case hardened,assuring positive biting action into the inturned edge of the Koka cable trunking.
KOKA offers a comprehensive range of standard return flange surface trunking, and accessories, in single and multi-compartment.
Material standard: Hot Dip Galvanized Sheet to BS EN 10142/3 Class 3.Stainless Steel S316
Standard Length: 2.44m and 3m available upon request.
Strong construction in ten different cross sections
Comprehensive edge protection
Deburred longitudinal edges
Covers with equipotential bonding
Simple installation
Applications:Cable Support
Specification:
|
Light Duty Cable Trunking |
|||||
|
Part No. |
Width(mm) |
Height(mm) |
Thickness(mm) |
Length(mm) | Finish |
|
CTK -5050 |
50 | 50 | 1.2/1.5/2.0 | 2500/3000 | EG/HDG/Powder Coating/SS304/SS316 |
|
CTK -7550 |
75 | 50 | 1.2/1.5/2.0 | 2500/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CTK -6060 | 60 | 60 | 1.2/1.5/2.0 | 2500/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CTK -10050 | 100 | 50 | 1.2/1.5/2.0 | 2500/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CTK -10075 | 100 | 75 | 1.2/1.5/2.0 | 2500/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CTK-100100 | 100 | 100 | 1.2/1.5/2.0 | 2500/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CTK-15075 | 150 | 75 | 1.2/1.5/2.0 | 2500/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CTK-150100 | 150 | 100 | 1.2/1.5/2.0 | 2500/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CTK -150150 | 150 | 150 | 1.2/1.5/2.0 | 2500/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CTK-200100 | 200 | 100 | 1.5/2.0 | 2500/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CTK-200150 | 200 | 150 | 1.5/2.0 | 2500/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CTK-200200 | 200 | 200 | 1.5/2.0 | 2500/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CTK-300100 | 300 | 100 | 1.5/2.0 | 2500/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CTK-300150 | 300 | 150 | 1.5/2.0 | 2500/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CTK-300200 | 300 | 200 | 1.5/2.0 | 2500/3000 | EG/HDG/Powder Coating/SS304/SS316 |

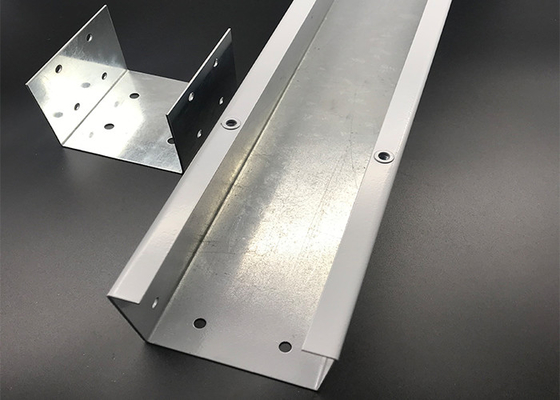

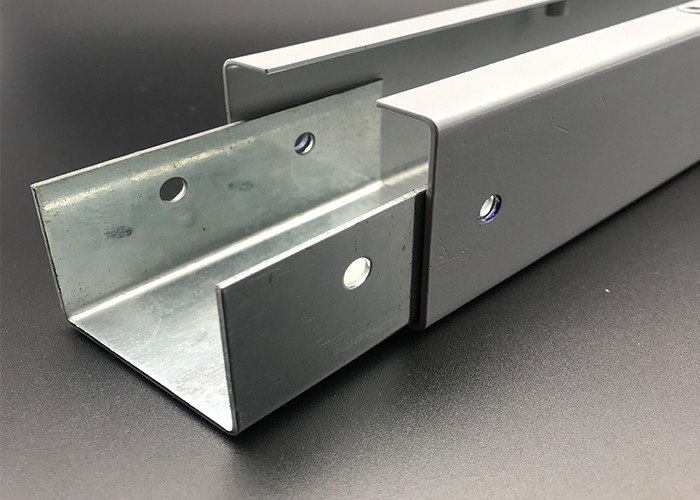

Product Show:
FAQ:
Q1: Are you manufacturer?
A: Yes,we are factory ,We have stamping and injection factories.
Q2: What services can we offer?
A: We can OEM and ODM,We have a strong design team,we can provide drawing.
Q3: What information need for quotation?
A: For example: 1: what material(carbon steel/Q235/SS304/SS316)
