Product Details:
|
| Material: | Steel/Q235B | Service: | OEM ODM |
|---|---|---|---|
| Maximum Load-bearing Capacity: | 216kg/meter | Length: | 2400mm,2500mm,3000mm |
| Certification: | ISO9001-2015 | Sample: | Available |
| Surface Finished: | HDG/POWDER COATED | Package: | Pallet |
| High Light: | Q235B Powder Coated Cable Trunking,2500mm Powder Coated Cable Trunking,216kg meter perforated cable trunking |
||

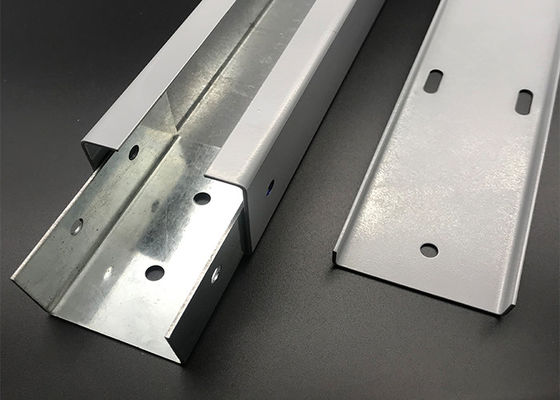

GI Cable Trunking connector powder coating
Products:Cable Trunking Connector
Offering you a complete choice of products which include steel cable trunking, stainless steel cable trunking, gi trunking cable tray and stainless steel cable tray trunking.
Features:Koka Cable Trunking are manufactured from mild steel cold rolled coil, and after stamping and machining operations are completed, they are case hardened,assuring positive biting action into the inturned edge of the Koka cable trunking.
Cover Fixing is available in two different types:
Screw fix, using blind rivets nut providing smooth edge to protect cables inside the trunking.
Turnbuckle Fix (Quick Release Cam), using high tensile steel with aluminum caste bottoms, at intervals not exceeding 2 Mtrs.
Trunking Finish options, ICMS offers other alternative for material finish upon the client’s request:
Hot Dip Galvanized to BS EN 1461 (formerly BS 729).
Electrostatic powder coated, with different standard RAL colors.
Epoxy Painted.
High-quality with most competitive price
vertically integrated processes, cost saving
No cheating material
Superiority of new product research and development
Applications:Cable Support
Specification:
|
Light Duty Cable Trunking |
|||||
|
Part No. |
Width(mm) |
Height(mm) |
Thickness(mm) |
Length(mm) | Finish |
|
CTK -5050 |
50 | 50 | 1.2/1.5/2.0 | 2500/3000 | EG/HDG/Powder Coating/SS304/SS316 |
|
CTK -7550 |
75 | 50 | 1.2/1.5/2.0 | 2500/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CTK -6060 | 60 | 60 | 1.2/1.5/2.0 | 2500/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CTK -10050 | 100 | 50 | 1.2/1.5/2.0 | 2500/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CTK -10075 | 100 | 75 | 1.2/1.5/2.0 | 2500/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CTK-100100 | 100 | 100 | 1.2/1.5/2.0 | 2500/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CTK-15075 | 150 | 75 | 1.2/1.5/2.0 | 2500/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CTK-150100 | 150 | 100 | 1.2/1.5/2.0 | 2500/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CTK -150150 | 150 | 150 | 1.2/1.5/2.0 | 2500/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CTK-200100 | 200 | 100 | 1.5/2.0 | 2500/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CTK-200150 | 200 | 150 | 1.5/2.0 | 2500/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CTK-200200 | 200 | 200 | 1.5/2.0 | 2500/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CTK-300100 | 300 | 100 | 1.5/2.0 | 2500/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CTK-300150 | 300 | 150 | 1.5/2.0 | 2500/3000 | EG/HDG/Powder Coating/SS304/SS316 |
| CTK-300200 | 300 | 200 | 1.5/2.0 | 2500/3000 | EG/HDG/Powder Coating/SS304/SS316 |
Product Show:
