Product Details:
|
| Material: | Stainless Steel | Service: | OEM ODM |
|---|---|---|---|
| Sample: | Available | Certification: | ISO9001-2015 |
| Package: | Carton Box | Usage: | Fire Pipe,Air Pipe |
| High Light: | 16 bar bellow pipe joint,ANSI 150 bellow pipe joint,floating flange pipe bellows expansion joint |
||

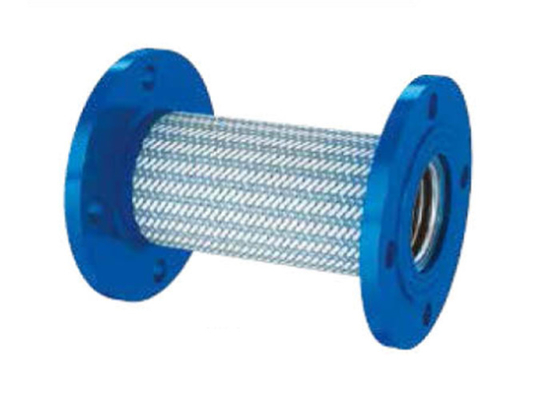

4"*36"Flexible joint One end floating flange the other end fixed ANSI150# 16bAR
Products:Stainless Steel Flexible Joint
SSFJ500-MLH is made of SUS304 material, multiplies bellows. When used in high temperature and high pressure fluid, it can make a long service life in piping system.
Application:Used in deformation joint.
Structure:
| Item | Part | Material | Remark |
| 1 | Bellows | SUS304 | SUS316/321 |
| 2 | Wire Braids | SUS304 | |
| 3 | Seal Ring | SUS304 | SUS316 |
| 4 | Flange | SS400 | SUS304/316/321 |
| 5 | Floating Flange Or Fixed Flange | SS400 | SUS304/316/321 |
Specification:
| Part No. | Nominal Bore | Total Length | Bellows O.D. | Lateral Movement | Working Pressure | |
| mm | inch | mm | mm | mm |
|
|
| SSFJ500MLH-112 | 40 | 1-1/2 | 500 | 56 | 50 | 16 |
| SSFJ500MLH-2 | 50 | 2 | 500 | 73.6 | 50 | 16 |
| SSFJ500MLH-212 | 65 | 2-1/2 | 500 | 88 | 50 | 16 |
| SSFJ500MLH-3 | 80 | 3 | 500 | 102 | 50 | 16 |
| SSFJ500MLH-4 | 100 | 4 | 600 | 128 | 50 | 16 |
| SSFJ500MLH-5 | 125 | 5 | 600 | 155 | 50 | 16 |
| SSFJ500MLH-6 | 150 | 6 | 600 | 185 | 50 | 16 |
| SSFJ500MLH-8 | 200 | 8 | 800 | 235 | 50 | 16 |
| SSFJ500MLH-10 | 250 | 10 | 1000 | 286 | 50 | 16 |
| SSFJ500MLH-12 | 300 | 12 | 1200 | 340 | 50 | 16 |

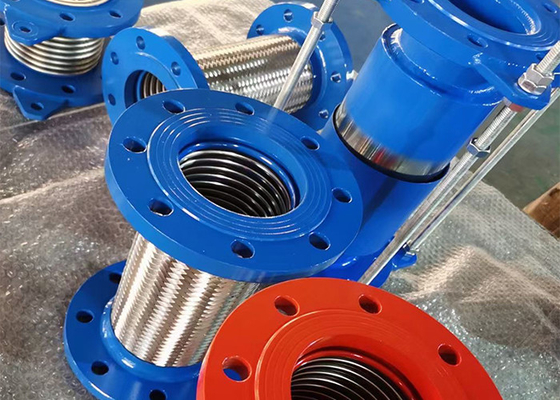

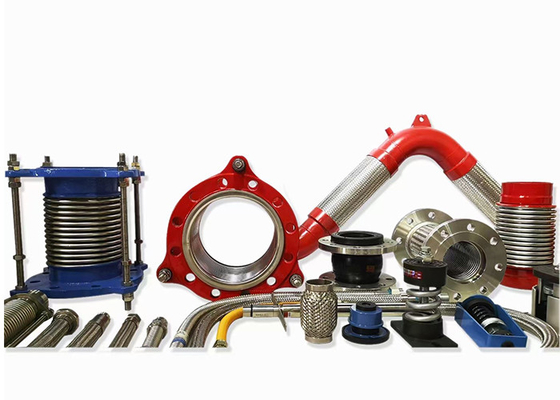

Product Show:
Package:
